Materials
Made of SrO. 6Fe2O3 and other trace elements.
Strontium ferrite powders have been designed for the production of all grades of hard ferrite. We will get high quality by adding proper additives to the powder. Our strict quality control system ensures stable and reliable quality.
Available product styles: arc, line segment, block
Grade:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 etc...M
agnetic property
Br can reach 430 KA/m Hcb can reach 310 KA/m,
Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3
|
Description: |
Permanent Magnet For Wiper Motors |
|
|
Material |
SrO. 6Fe2O3 |
|
|
Product Name |
Ferrite Magnet, Ceramic Magnet |
|
|
Working Temperature |
Grade |
Temperature |
|
|
Y10T |
250ºC |
|
|
Y25 |
250ºC |
|
|
Y30 |
250ºC |
|
|
Y33 |
250ºC |
|
|
Y35 |
250ºC |
|
|
Y30BH |
250ºC |
|
|
Y33BH |
250ºC |
|
Magnet Shape: |
Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available |
|
|
Features: |
A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion |
|
|
Applications: |
Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, Wiper Motors,etc |
|

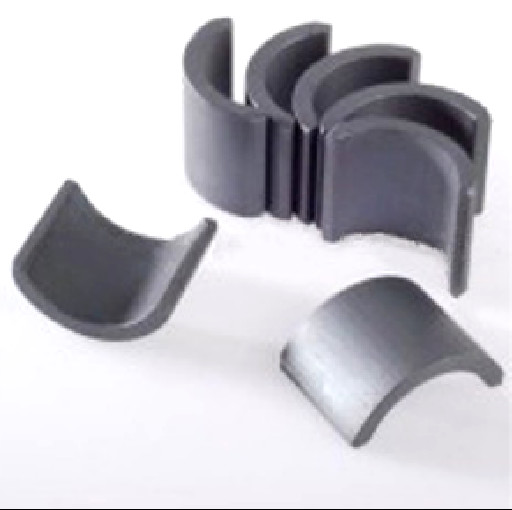

1, permanent magnet for Wiper motors of Automobiles
2, JC/Y3932, JC/Y3939, JC/Y4041
3, Past ISO/TS16949: 2009
4, Competitive price
