IATF16949 Custom Ferrite Magnets Start Stop Motors JC-Y4127

Negotiable
MOQ
Negotiable
Price
IATF16949 Custom Ferrite Magnets Start Stop Motors JC-Y4127
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Environmentally Friendly
Certification: IATF 16949
Model Number: OEM
Application: Motor Magnet
Annual Capacity: 5000T
Grade: JC-Y3939;JC-Y4041;JC-Y4127
High Light:

IATF16949 Custom Ferrite Magnets

,

Custom Ferrite Magnets Stop Motor

,

IATF16949 iron ferrite Magnet

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: L/C, T/T
Supply Ability: 5000T Annual Capacity
Product Description

Product Description


Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Model Number: OEM
Type: Permanent, Magnet for Motorcycle Starters
Composite: Ferrite Magnet
Application: Motor Magnet
Features: Reasonable price,Custom-made dimension,environmentally friendly



GRADE

Br

Hcb

Hcj

(BH)max

T

Gs

kA/m

Oe

kA/m

Oe

kJ/m3

MGOe

JC-Y3932

0.375-0.400

3750-4000

230-275

2890-3456

235-290

2950-3645

26.5-31.5

3.33-3.96

JC-Y3939

0.380-0.400

3800-4000

255-290

3200-3645

260-325

3260-4080

26.5-31.8

3.33-4.00

JC-Y4041

0.390-0.415

3900-4150

260-300

3260-3770

300-350

3770-4400

27.0-32.0

3.39-4.02

JC-Y4127

0.400-0.420

4000-4200

180-225

2260-2825

185-228

2320-2865

30.0-33.6

3.77-4.22

JC-Y4231

0.410-0.430

4100-4300

220-260

2765-3265

255-270

2825-3390

31.5-35.5

3.95-4.46

JC-Y3849

0.370-0.400

3700-4000

271-305

3405-3830

370-400

4650-5025

26.0-31.2

3.27-3.92

JC-Y4240

0.410-0.430

4100-4300

285-314

3580-3945

306-340

3845-4270

31.5-34.4

3.95-4.32

JC-Y4545

0.440-0.460

4400-4600

310-354

3895-4445

346-375

4350-4710

36.5-39.5

4.59-4.96

JC-Y4350

0.420-0.440

4200-4400

295-325

3700-4080

382-410

4800-5150

33.5-36.5

4.21-4.59


Packaging & Delivery
Packaging Details: carton. pallet..
Delivery Detail: 30 days

Specifications


Ferrite Magnet
ISO/TS: 16949:2009
High performance,High Consistency
Annual capacity: 5000T
Over 30 years history.

Name: Ferrite Magnet


Materials
Permanent ferrite magnet is made of SrO.6Fe2O3 and other micro elements by ceramic processing.
Strontium ferrite powders have been designed to produce all grades of hard ferrite. High quality is made by adding proper additives into the powders. Strict quality control system ensure that the quality is stable and reliable.

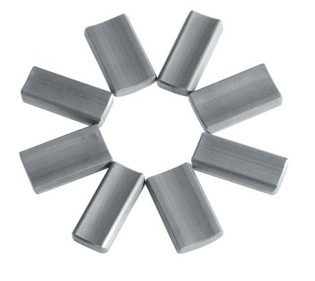

Product styles available: Arc , Segment.

Grade:
JC-Y3932;JC-Y3939;JC-Y4041;JC-Y4127;JC-Y4231;JC-Y3744;JC-Y3849;JC-Y4240 etc ....


Magnetic property
Br can reach 430 mT Hcb can reach 310 KA/m,
Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3

Size
Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, arc height.

Intelligence Honor
In October 2004 ,It was conferred with High-tech Product Certificate ,awarded as a High-tech Enterprises in Sichuan" by Sichuan Provincial Science and Technology Department in December 2004,and "First Price of Sichuan SME Technology Innovation Award in December 2004.In July 2004,our new JC-Y4240 performance (equivalent to Japan's TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support . In 2007 ,"Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintered materials " were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations

Detailed Product Description
1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate:ISO9001:2000
