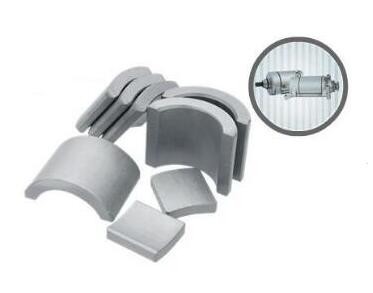

Various Motorcycle Starter Motor Magnets Tiles 430 MT Br

Negotiable
MOQ
Negotiable
Price
Various Motorcycle Starter Motor Magnets Tiles 430 MT Br
Features Gallery Product Description Request A Quote
Features
Specifications
Port: Luzhou, China
Transport Package: Carton ,Wooden Pallet, Customized Package
Specification: ISO/TS16949
Trademark: JOINT-mag
Origin: Sichuan, China
Application: Motor Magnet
High Light:

Various Motorcycle Starter Motor Magnets

,

Starter Motor Magnets Tiles

,

430 mT Br Ceramic Ferrite Magnet

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: T/T
Supply Ability: 5000T Annual Capacity
Product Description

Product Description

Materials
Permanent ferrite magnet is made of SrO.6Fe2O3 and other micro elements by ceramic processing.
Strontium ferrite powders have been designed to produce all grades of hard ferrite. High quality is made by adding proper additives into the powders. Strict quality control system ensure that the quality is stable and reliable.



Quick Details


Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Model Number: OEM
Type: Permanent, Magnet for Motorcycle Starters
Composite: Ferrite Magnet
Application: Motor Magnet
Features: Reasonable price,Custom-made dimension,environmentally friendly


Packaging & Delivery
Packaging Details: carton.pallet..
Delivery Detail: 30 days





GRADE Br Hcb Hcj (BH)max
T Gs kA/m Oe kA/m Oe kJ/m3 MGOe
JC-Y3932 0.375-0.400 3750-4000 230-275 2890-3456 235-290 2950-3645 26.5-31.5 3.33-3.96
JC-Y3939 0.380-0.400 3800-4000 255-290 3200-3645 260-325 3260-4080 26.5-31.8 3.33-4.00
JC-Y4041 0.390-0.415 3900-4150 260-300 3260-3770 300-350 3770-4400 27.0-32.0 3.39-4.02
JC-Y4127 0.400-0.420 4000-4200 180-225 2260-2825 185-228 2320-2865 30.0-33.6 3.77-4.22
JC-Y4231 0.410-0.430 4100-4300 220-260 2765-3265 255-270 2825-3390 31.5-35.5 3.95-4.46
JC-Y3849 0.370-0.400 3700-4000 271-305 3405-3830 370-400 4650-5025 26.0-31.2 3.27-3.92
JC-Y4240 0.410-0.430 4100-4300 285-314 3580-3945 306-340 3845-4270 31.5-34.4 3.95-4.32
JC-Y4545 0.440-0.460 4400-4600 310-354 3895-4445 346-375 4350-4710 36.5-39.5 4.59-4.96
JC-Y4350 0.420-0.440 4200-4400 295-325 3700-4080 382-410 4800-5150 33.5-36.5 4.21-4.59


Specifications


Ferrite Magnet
ISO/TS:16949:2009
High performance,High Consistency
Annual capacity: 5000T
Over 30 years history.

Name: Ferrite Magnet


Product styles available: Arc , Segment.

Grade:


JC-Y3932;JC-Y3939;JC-Y4041;JC-Y4127;JC-Y4231;JC-Y3744;JC-Y3849;JC-Y4240 etc ....

Magnetic property


Br can reach 430 mT Hcb can reach 310 KA/m,
Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3

Size


Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, arc height.

Intelligence Honor


In October 2004 ,It was conferred with High-tech Product Certificate ,awarded as a High-tech Enterprises in Sichuan" by Sichuan Provincial Science and Technology Department in December 2004,and "First Price of Sichuan SME Technology Innovation Award in December 2004.In July 2004,our new JC-Y4240 performance (equivalent to Japan's TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support . In 2007 ,"Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintered materials " were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations

Detailed Product Description

1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate: ISO9001:2000
