Brand Name: Joint-mag
Type: Permanent
Composite: Ferrite Magnet
Application: Motor Magnet
Strontium: Automobile starter magnet
Shape: Sheet
Packaging & Delivery
Packaging Details: Carton, the size is different, based on the magnet weight and size
Delivery Time: According to the quantity of the actual order
Magnet info | |
Materials | Ferrite |
Grades | Y25, Y30, Y33, Y35,Y30BH,Y10T, Y40 |
Shapes | Disc,disk,cylinder,block,ring,bar and customized |
Size | Length x Width x Thickness You could choose freely according to your plan. |
Certificate | IATF 16949 |
Quality | Our expert quality control department ensures magnets are high quality. |
Applications | Household application, Industrial application…. |
Permanent Magnet for general generators
ISO/TS: 16949: 2009
High performance, high consistency
Low price, fast delivery

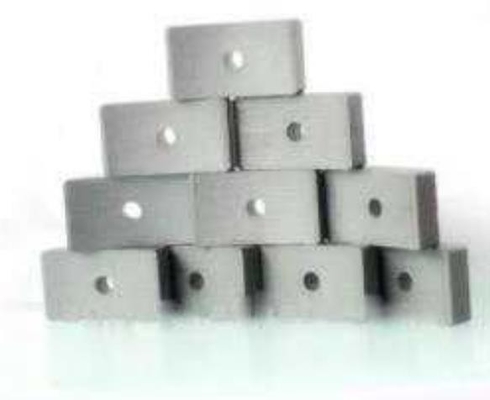

Permanent Ferrite Magnet For General Generators and Standard Motors
Feature: A hole in the magnet center, easily installation and stable performance.
Annual Production Capacity: Around 5000 Ton
Strict Production Procedure: Material testing-Grinding-magnetic field wet pressing-sintering- machining-cleaning and selecting-packing and delivery.
Material Grade: As your requirement
1) JC-Y3939
Br: 0.38-0.40 T Hcb: 270-290 KA/m Hcj: 280-320 KA/m BH(max): 27.5-31.8 KJ/ m3
Density: 4.5-5.1g/cm3
Curie Temperature: 460-480°C
