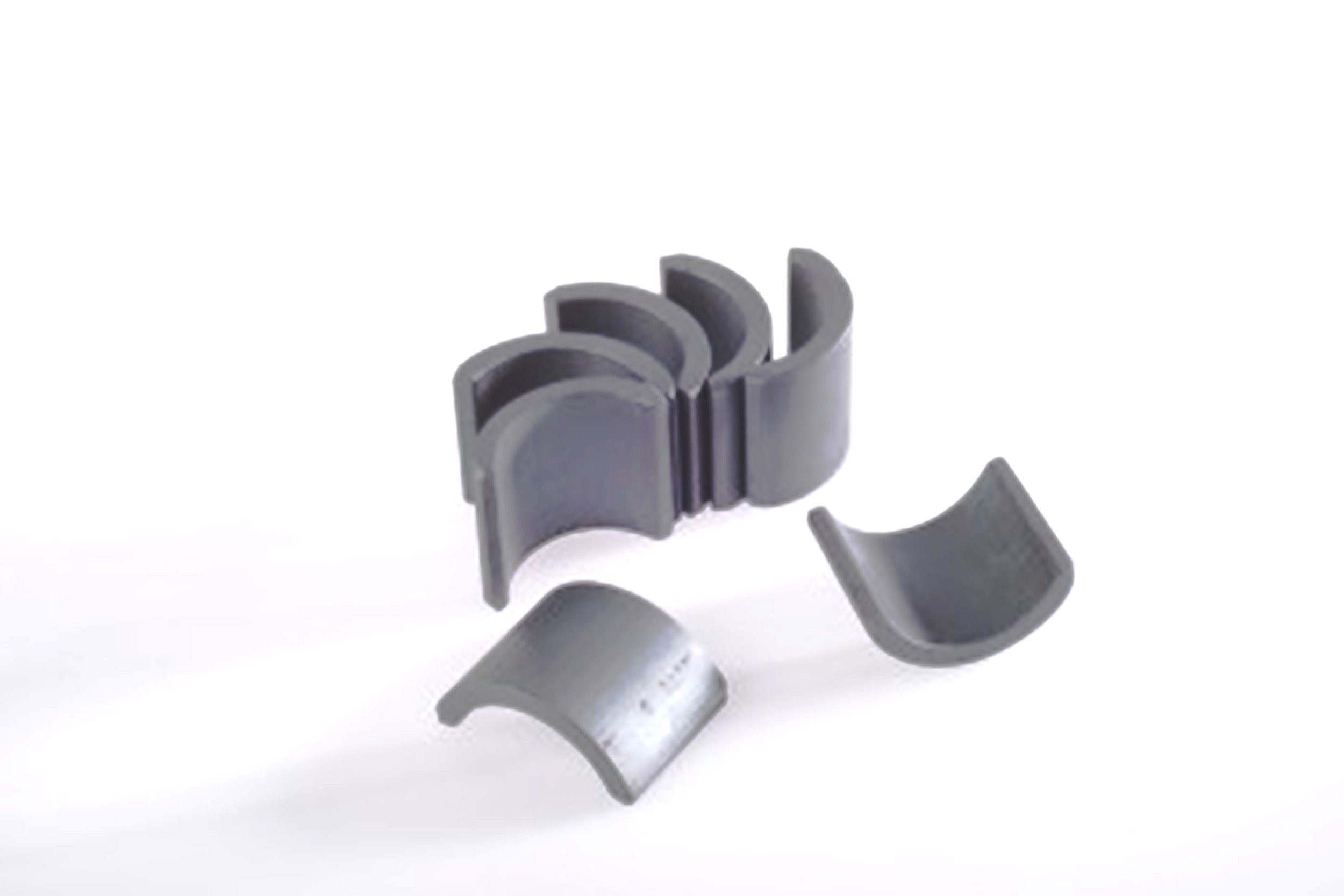

C05-9 Hard Arc Segment Magnets Tile Y33 Y35 High Consistency

Negotiable
MOQ
Negotiable
Price
C05-9 Hard Arc Segment Magnets Tile Y33 Y35 High Consistency
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: C05-9
Transport Package: Customized Cartons And Pallets
Specification: ISO/TS16949
Trademark: Joint-Mag
Origin: Sichuan, China
Shape: TILE
High Light:

C05-9 Arc Segment Magnets

,

Arc Segment Magnets Tile Y33

,

arc shaped magnets Y35

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Supply Ability: 5000T Annual Capacity
Product Description

Product Description

Place of Origin: Sichuan, China (Mainland)

Brand Name: OEM

Model Number: C05-9

Type: Permanent

Composite: Ferrite Magnet

Shape: TILE

Application: Motor Magnet


Magnet info
Materials Ferrite
Grades Y25, Y30, Y33, Y35,Y30BH,Y10T, Y40
Shapes Disc,disk,cylinder,block,ring,bar and customized
Size Length x Width x Thickness You could choose freely according to your plan.
Certificate IATF 16949
Quality Our expert quality control department ensures magnets are high quality.
Applications Household application, Industrial application….



Packaging & Delivery

Packaging Details: Carton

Delivery Detail: Per your order


Specifications

Permanent Ferrite Magnet
ISO/TS: 164949: 2009
High performance, high consistency
5000T/ year
Arc Segment

Name: Ferrite tile

Size: Customer made


Materials

Permanent ferrite magnet is made of SrO. 6Fe2O3 and other microelements by ceramic processing.

Strontium ferrite powders have been designed to produce all grades of hard ferrites. High quality is made by adding proper additives into the powders. Strict quality control system ensure that the quality is stable and reliable.



Product styles available: Arc, Segment



Grade:

JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 etc...

Magnetic property

Br can reach 430 mT Hcb can reach 310 KA/m,

Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3



Size

Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height



Intelligence Honor

In October 2004, It was conferred with High-tech Product Certificate, awarded as a High-tech Enterprises in Sichuan by Sichuan Provincial Science and Technology Department in December 2004, and “First Price of Sichuan SME Technology Innovation Award” in December 2004. In July 2004, our new JC-Y4240 performance (equivalent to Japan’s TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support. In 2007, ”Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintering materials ” were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations.

Please note: Our quotation for you is for your drawings which include magnetic property and size.
