Detailed Product Description
1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate: ISO9001:2000
Permenant Ferrite Magnets for sale
Ferrite Magnets' outstanding properties
1) High performance:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; power requirements).
2) High working temperature:
JC-Y4350 series with super high coercive force of 4800-5150 Oe can replace NdFeB magnets with lower price.
3) High consistency:
The Br and Hcj of the surface magnetic field and magnetic flux can be controlled within +/-1%.
4) High corrosion resistance:
The sales spray test and damp heat test of high anti-corrosion coating can exceed 800 hours
5) Low weight loss
The average low body weight loss within 20 days is less than 10mg/cm2.
Pros: Even when two blocks touch another block or common iron, they hold together very firmly. It's hard to pull them apart (but easy to slide).
Quick Details
| Place of Origin | Sichuan, China (Mainland), Sichuan, China (Mainland) |
| Brand Name | JOINT-MAG, Joint-Mag |
| Model Number | Other, permanent |
| Type | Permanent, Inverter Air Conditioner Ferrite Magnet |
| Composite | Ferrite Magnet, ferrite magnet |

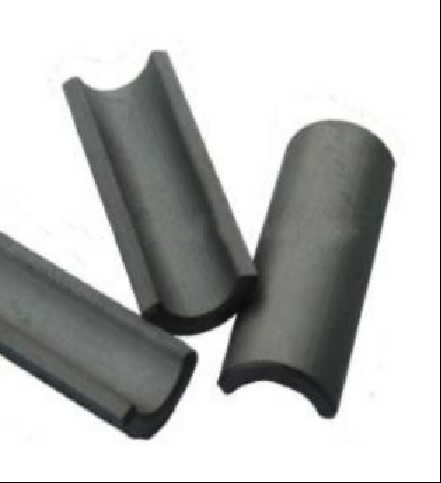

| Shape | Sheet, arc, segment, tile. Block |
| Application | Inverter Air Conditioner |
| Size | According to the drawing |
| Name | Ferrite |
| Color | Charcoal gray |
|
GRADE |
Br |
Hcb |
Hcj |
(BH)max |
||||
|
T |
Gs |
kA/m |
Oe |
kA/m |
Oe |
kJ/m3 |
MGOe |
|
|
JC-Y3932 |
0.375-0.400 |
3750-4000 |
230-275 |
2890-3456 |
235-290 |
2950-3645 |
26.5-31.5 |
3.33-3.96 |
|
JC-Y3939 |
0.380-0.400 |
3800-4000 |
255-290 |
3200-3645 |
260-325 |
3260-4080 |
26.5-31.8 |
3.33-4.00 |
|
JC-Y4041 |
0.390-0.415 |
3900-4150 |
260-300 |
3260-3770 |
300-350 |
3770-4400 |
27.0-32.0 |
3.39-4.02 |
|
JC-Y4127 |
0.400-0.420 |
4000-4200 |
180-225 |
2260-2825 |
185-228 |
2320-2865 |
30.0-33.6 |
3.77-4.22 |
|
JC-Y4231 |
0.410-0.430 |
4100-4300 |
220-260 |
2765-3265 |
255-270 |
2825-3390 |
31.5-35.5 |
3.95-4.46 |
|
JC-Y3849 |
0.370-0.400 |
3700-4000 |
271-305 |
3405-3830 |
370-400 |
4650-5025 |
26.0-31.2 |
3.27-3.92 |
|
JC-Y4240 |
0.410-0.430 |
4100-4300 |
285-314 |
3580-3945 |
306-340 |
3845-4270 |
31.5-34.4 |
3.95-4.32 |
|
JC-Y4545 |
0.440-0.460 |
4400-4600 |
310-354 |
3895-4445 |
346-375 |
4350-4710 |
36.5-39.5 |
4.59-4.96 |
|
JC-Y4350 |
0.420-0.440 |
4200-4400 |
295-325 |
3700-4080 |
382-410 |
4800-5150 |
33.5-36.5 |
4.21-4.59 |
Specifications
1, Ferrite magnet for DC motor
2, ISO/TS16949: 2009
3, Good quality and competitive price
4, Excellent service and aftermarket
Sincerely welcome to visit our factory.
Samples are available for your test.
Address: Chenguang Industrial Park, Fushun County, Sichuan, China
Company Introduction:
Our company is certifcated by ISO/TS 16949: 2002 quality system, meanwhile we are a member organization of National Standarlized Technical Committee of magnetic components and ferrite materials, joint-mag is leading the development of the industry and has become one of the most powerful professional manufacturers of permanent ferrite products through continuous technological progress and equipment upgrade.
