Strongest Powerful Sintered Ferrite Permanent Magnet ODM OEM

Negotiable
MOQ
Negotiable
Price
Strongest Powerful Sintered Ferrite Permanent Magnet ODM OEM
Features Gallery Product Description Request A Quote
Features
Specifications
Port: Luzhou, China
Transport Package: Customized Cartons And Pallets
Specification: ISO/TS16949
Trademark: Joint-Mag
Origin: Sichuan, China
Type: Permanent, Starter Parts
High Light:

sintered ferrite permanent magnet

,

strongest permanent magnet ODM

,

powerful permanent magnet OEM

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: T/T
Supply Ability: 5000T Annual Capacity
Product Description



Strong Permanent Magnet For Sale Sintered Ferrite Magnet Customized

Product Description

1)High performance:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 JC-Y4350 etc (The grade like JC-Y4350&JC-Y3849, JC-Y4240could meet requirements on strong power).



2)High working temperature:
The JC-Y4350 series with 4800-5150 Oe super-high coercive force can replace NdFeB magnets with much lower price.


3)High consistency:
The Br and Hcj of surface magnetic field and magnetic flux can be controlled with +/-1%.


4)High Anti-corrosion:
The sale spray test and humid heat test of the high anti-corrosion coating could be more than 800 hours


5) Low weight loss
The average low weight loss is less than 10 mg/cm2 in 20 days.
Pros: Pretty strong hold between two of these blocks even if a couple of them by contacting the other one or plain iron. It's difficult to pull away them(easy to slide however).



Ferrite Magnet Applications
Motor assemblies, step motor, DC motor, linear motor, speakers, and so on.
Also good for attaching thick stacks of paper to refrigerators etc or pinching papers or textiles together.





Quick Details

Place of Origin Sichuan, China (Mainland), Sichuan, China (Mainland)
Brand Name JOINT-MAG, Joint-Mag
Type Permanent, Starter Parts
Composite Ferrite Magnet, Ferrite Magnet

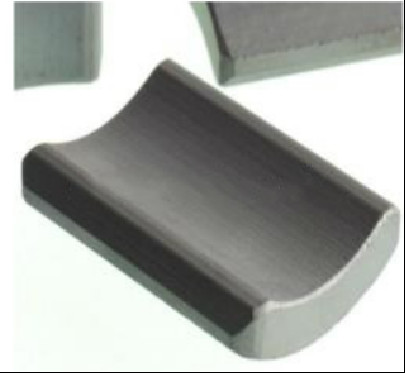

Shape Block, Arc, Segment, Block, Sheet, other according to your requirements
Application Industrial Magnet
Size According to customer's requirements
Car Make Automobile Staters
Model Number Permanent
Name Ferrite
Color Charcoal gray



GRADE Br Hcb Hcj (BH)max
T Gs KA/m Oe KA/m Oe KJ/m3 MGOe
JC-Y3932 0.375-0.400 3750-4000 230-275 2890-3456 235-290 2950-3645 26.5-31.5 3.33-3.96
JC-Y3939 0.380-0.400 3800-4000 255-290 3200-3645 260-325 3260-4080 26.5-31.8 3.33-4.00
JC-Y4041 0.390-0.415 3900-4150 260-300 3260-3770 300-350 3770-4400 27.0-32.0 3.39-4.02
JC-Y4127 0.400-0.420 4000-4200 180-225 2260-2825 185-228 2320-2865 30.0-33.6 3.77-4.22
JC-Y4231 0.410-0.430 4100-4300 220-260 2765-3265 255-270 2825-3390 31.5-35.5 3.95-4.46
JC-Y3849 0.370-0.400 3700-4000 271-305 3405-3830 370-400 4650-5025 26.0-31.2 3.27-3.92
JC-Y4240 0.410-0.430 4100-4300 285-314 3580-3945 306-340 3845-4270 31.5-34.4 3.95-4.32
JC-Y4545 0.440-0.460 4400-4600 310-354 3895-4445 346-375 4350-4710 36.5-39.5 4.59-4.96
JC-Y4350 0.420-0.440 4200-4400 295-325 3700-4080 382-410 4800-5150 33.5-36.5 4.21-4.59
