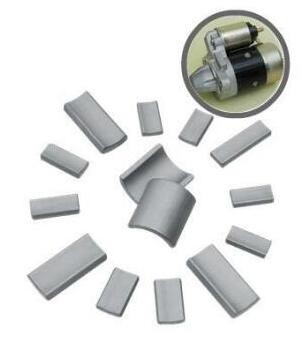

Ferrite Magnet for Automobile Starter/Car Starter/Car Motor Accessory
Quick Details
| Prouct Name | Super Strong Permanent Magnet |
| Brand Name | Joint-Mag |
| Type | Starter Parts |
| Composite | Ferrite Magnet |
| Shape | Magnet Tile, Arc, Segment, Block, Sheet, other according to your requirements |
| Application | Industrial Magnet |
| Size | According to customer's requirements |
| Car Make | Automobile Staters |
| Color | Charcoal gray |
| Place of Origin | Sichuan, China (Mainland) |
Packaging & Delivery
Packaging Details: Carton Wood Pallet
Special Package according to your requirement
Delivery Time:10 -40 days or according to the order
1. Permanent Ferrite Magnet
2. JC-Y4350, FB5H...
3. Annual Capacity: 5000/T.
4, Excellent service
Detailed Product Description:
1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate: ISO9001: 2000
Ferrite Magnets' outstanding properties
Br can reach 4300 GS Hcb can reach 3946 OE,
Hcj can reach 4147 OE (BH)max can reach 4.45 MG OE.
1) High performance:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 JC-Y4350 etc (The grade like JC-Y4350&JC-Y3849, JC-Y4240could meet requirements on strong power).
|
GRADE |
Br |
Hcb |
Hcj |
(BH)max |
||||
|
T |
GS |
KA/m |
OE |
KA/m |
OE |
KJ/m3 |
MGOe |
|
|
JC-Y3932 |
0.375-0.400 |
3750-4000 |
230-275 |
2890-3456 |
235-290 |
2950-3645 |
26.5-31.5 |
3.33-3.96 |
|
JC-Y3939 |
0.380-0.400 |
3800-4000 |
255-290 |
3200-3645 |
260-325 |
3260-4080 |
26.5-31.8 |
3.33-4.00 |
|
JC-Y4041 |
0.390-0.415 |
3900-4150 |
260-300 |
3260-3770 |
300-350 |
3770-4400 |
27.0-32.0 |
3.39-4.02 |
|
JC-Y4127 |
0.400-0.420 |
4000-4200 |
180-225 |
2260-2825 |
185-228 |
2320-2865 |
30.0-33.6 |
3.77-4.22 |
|
JC-Y4231 |
0.410-0.430 |
4100-4300 |
220-260 |
2765-3265 |
255-270 |
2825-3390 |
31.5-35.5 |
3.95-4.46 |
|
JC-Y3849 |
0.370-0.400 |
3700-4000 |
271-305 |
3405-3830 |
370-400 |
4650-5025 |
26.0-31.2 |
3.27-3.92 |
|
JC-Y4240 |
0.410-0.430 |
4100-4300 |
285-314 |
3580-3945 |
306-340 |
3845-4270 |
31.5-34.4 |
3.95-4.32 |
|
JC-Y4545 |
0.440-0.460 |
4400-4600 |
310-354 |
3895-4445 |
346-375 |
4350-4710 |
36.5-39.5 |
4.59-4.96 |
|
JC-Y4350 |
0.420-0.440 |
4200-4400 |
295-325 |
3700-4080 |
382-410 |
4800-5150 |
33.5-36.5 |
4.21-4.59 |
2) High working temperature:
The JC-Y4350 series with 4800-5150 OE super-high coercive force can replace NdFeB magnets with much lower price.
3) High consistency:
The Br and Hcj of surface magnetic field and magnetic flux can be controlled with +/-1%.
4) High Anti-corrosion:
The sale spray test and humid heat test of the high anti-corrosion coating could be more than 800 hours
5) Low weight loss
The average low weight loss is less than 10 mg/cm2 in 20 days.
Pros: Pretty strong hold between two of these blocks even if a couple of them by contacting the other one or plain iron. It's difficult to pull away them(easy to slide however).
Ferrite Magnet applications:
Applicable for the starters of 1.0W, 1.2W. 1.4W, 1.5W, 1.7W are available and mainly applied in Nissan and Red Flag based on JC-Y3744, JU-Y3849 MATERIAL Grade and different requirements of environmental temperatures can be adapted to.
Product:
In 2007, "Technological of manufacuturing high-performance ferrite permanent with YF30 pre-sintering materials" and "Technology of Preparing ferrite magnet for high-performance automobile strter motor with YF30 pre-sintering materials" were awarded with the file of Outstanding Technical Achievements and Outstanding products by the National Materials and Devices industry Assocuations.
Intelligence Honor:
In October 2004, It was conferred with High-tech Product Certificate, awarded as a High-tech Enterprises in Sichuan by Sichuan Provincial Science and Technology Department in December 2004, and First Price of Sichuan SME Technology Innovation Award in December 2004. In July 2004, our new JC-Y4240 performance (equivalent to Japan's TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support. In 2007, Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintering materials were awarded with the tile of Outstanding Technical Achievements and Outstanding Productsby the National Materials and Devices industry associations.
Size:

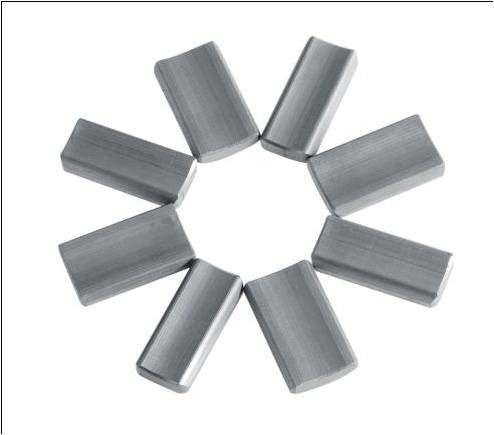

Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height.
