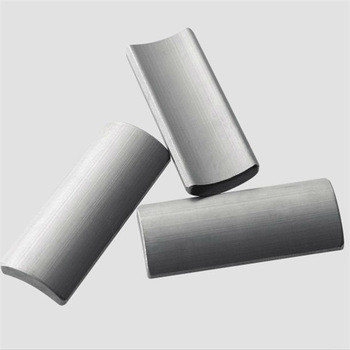

AC Condenser Fan Motor Magnets Used In Electric Motors 3946 OE Arc Shape

AC Condenser Fan Motor Magnets Used In Electric Motors 3946 OE Arc Shape
Features Gallery Product Description Request A Quote
Model NO.: Various Accordng To The Drawins, Permanent
Transport Package: Carton Wood Pallet
Trademark: JOINT-MAG, Joint-Mag
Origin: Sichuan, China (Mainland),
Application: Industrial Magnet
Car Make: Automobile Staters
High Light:

AC Condenser Fan Motor Magnet


Magnets Used In Electric Motors 3946 OE


AC Condenser arc ferrite magnet

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 5000T Annual Capacity
Product Description

Product Description

Quick Details

Place of Origin: Sichuan, China (Mainland), Sichuan, China (Mainland)

Brand Name: Joint-Mag, Joint-Mag

Model Number: Various accordng to the drawins, Permanent
Type: Permanent, Starter Parts
Composite: Ferrite Magnet, Ferrite Magnet
Shape: Magnet Tile, Arc, Segment, Block, Sheet, other according to your requirements
Application: Industrial Magnet
Size: According to customer's requirements
Car Make: Automobile Staters
Name: Ferrite
Color: Charcoal gray


GRADE Br Hcb Hcj (BH)max
JC-Y3932 0.375-0.400 3750-4000 230-275 2890-3456 235-290 2950-3645 26.5-31.5 3.33-3.96
JC-Y3939 0.380-0.400 3800-4000 255-290 3200-3645 260-325 3260-4080 26.5-31.8 3.33-4.00
JC-Y4041 0.390-0.415 3900-4150 260-300 3260-3770 300-350 3770-4400 27.0-32.0 3.39-4.02
JC-Y4127 0.400-0.420 4000-4200 180-225 2260-2825 185-228 2320-2865 30.0-33.6 3.77-4.22
JC-Y4231 0.410-0.430 4100-4300 220-260 2765-3265 255-270 2825-3390 31.5-35.5 3.95-4.46
JC-Y3849 0.370-0.400 3700-4000 271-305 3405-3830 370-400 4650-5025 26.0-31.2 3.27-3.92
JC-Y4240 0.410-0.430 4100-4300 285-314 3580-3945 306-340 3845-4270 31.5-34.4 3.95-4.32
JC-Y4545 0.440-0.460 4400-4600 310-354 3895-4445 346-375 4350-4710 36.5-39.5 4.59-4.96
JC-Y4350 0.420-0.440 4200-4400 295-325 3700-4080 382-410 4800-5150 33.5-36.5 4.21-4.59


1. Permanent Ferrite Magnet
2. JC-Y4350, FB5H...
3. Annual Capacity: 5000/T.
4, Excellent service


Detailed Product Description:


1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate: ISO9001: 2000


Ferrite Magnets' outstanding properties

Br can reach 4300 GS Hcb can reach 3946 OE,

Hcj can reach 4147 OE (BH)max can reach 4.45 MG OE.


1) High performance:

JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 JC-Y4350 etc (The grade like JC-Y4350&JC-Y3849, JC-Y4240could meet requirements on strong power).

2) High working temperature:

The JC-Y4350 series with 4800-5150 OE super-high coercive force can replace NdFeB magnets with much lower price.

3) High consistency:

The Br and Hcj of surface magnetic field and magnetic flux can be controlled with +/-1%.

4) High Anti-corrosion:

The sale spray test and humid heat test of the high anti-corrosion coating could be more than 800 hours

5) Low weight loss

The average low weight loss is less than 10 mg/cm2 in 20 days.

Pros: Pretty strong hold between two of these blocks even if a couple of them by contacting the other one or plain iron. It's difficult to pull away them(easy to slide however).


Ferrite Magnet Applications:


Applicable for the starters of 1.0W, 1.2W. 1.4W, 1.5W, 1.7W are available and mainly applied in Nissan and Red Flag based on JC-Y3744, JU-Y3849 MATERIAL Grade and different requirements of environmental temperatures can be adapted to.


In 2007, "Technological of manufacuturing high-performance ferrite permanent with YF30 pre-sintering materials" and "Technology of Preparing ferrite magnet for high-performance automobile strter motor with YF30 pre-sintering materials" were awarded with the file of Outstanding Technical Achievements and Outstanding products by the National Materials and Devices industry Assocuations.


Packaging & Delivery
Packaging Details: Carton Wood Pallet
Special Package according to your requirements
Delivery Time: 10 -40 dyas or according to the order




Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height.
