Permanent Hard Ferrite Magnets Segment Various Generator Y35 ferrite magnet

Negotiable
MOQ
Negotiable
Price
Permanent Hard Ferrite Magnets Segment Various Generator Y35 ferrite magnet
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: JM6
Transport Package: Carton, Pallet
Trademark: Joint-mag
Origin: Sichuan, China (Mainland)
Material: Y40, Y33, Y30H-1
Color: Black, Gray
High Light:

Permanent Hard Ferrite Magnets

,

Various Generator Y35 ferrite magnet

,

Y35 soft ferrites and hard ferrites

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: L/C, T/T
Supply Ability: 5000T Annual Capacity
Product Description

Product Description

Quick Details

Place of Origin: Sichuan, China (Mainland)

Brand Name: JOINT-MAG

Model Number: JM6
Type: MAGNET TILE
Color: Black, gray
Technology: Ceramic
Material: Y40, Y33, Y30H-1



Magnet info
Materials Ferrite
Grades Y25, Y30, Y33, Y35,Y30BH,Y10T, Y40
Shapes Disc,disk,cylinder,block,ring,bar and customized
Size Length x Width x Thickness You could choose freely according to your plan.
Model Number JM6
Quality Our expert quality control department ensures magnets are high quality.
Applications Household application, Industrial application….



Packaging & Delivery
Packaging DetailsCarton, palletDelivery Time15-40 DAYS

Specifications

Ferrite Magnet Generator
ISO/TS16949: 2009
High performance, high consistency
Short LeadTime, Fast delivery
Domestic Supplier



Magnetic Materials



Permanent ferrite magnet is made of SrO. 6Fe2O3 and other microelements by ceramic processing.

Strontium ferrite powders have been designed to produce all grades of hard ferrites. High quality is made by adding proper additives into the powders. Strict quality control system ensure that the quality is stable and reliable.

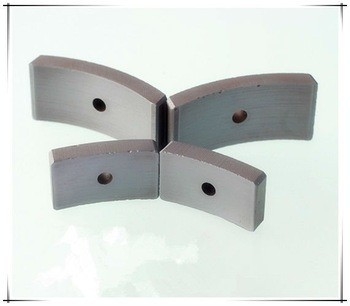

Product styles available:



Arc, Segment



Material Grade:

JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 etc... M



agnetic property:

Br can reach 430 mT Hcb can reach 310 KA/m,

Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3



Magnet Size

Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height



Intelligence Honor

In October 2004, It was conferred with High-tech Product Certificate, awarded as a “High-tech Enterprises in Sichuan” by Sichuan Provincial Science and Technology Department in December 2004, and “First Price of Sichuan SME Technology Innovation Award” in December 2004. In July 2004, our new JC-Y4240 performance (equivalent to Japan’s TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support. In 2007, ”Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintering materials ” were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations.
