SrO 6Fe2O3 Hard Ferrite Magnet Fan Motor Y35 Y30 Customized

Negotiable
MOQ
Negotiable
Price
SrO 6Fe2O3 Hard Ferrite Magnet Fan Motor Y35 Y30 Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Transport Package: Customized Cartons And Pallets
Specification: ISO/TS16949
Trademark: Joint-Mag
Origin: Sichuan, China
Product Name: Hard Ferrite Fan Arc Magnet
Application: Motor Number
High Light:

SrO 6Fe2O3 Hard Ferrite Magnet

,

Hard Ferrite Magnet Fan Motor

,

SrO 6Fe2O3 Custom Ferrite Magnet

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: T/T
Supply Ability: 5000T Annual Capacity
Product Description

Product Description

Materials



Permanent ferrite magnet is made of SrO.6Fe2O3 and other microelements by ceramic processing.

Strontium ferrite powders have been designed to produce all grades of hard ferrites. High quality is made by adding proper additives into the powders. Strict quality control system ensure that the quality is stable and reliable.



Quick Details

Place of Origin: Sichuan, China (Mainland)

Brand Name: OEM

Model Number: oem

Type: Permanent

Composite: Ferrite Magnet

Shape: TILE
Application: Motor Magnet



Packaging & Delivery

Packaging Details: carton

Delivery Detail: Per your order


Description:

Hard Ferrite Magnet Fan Motor

Material:

SrO. 6Fe2O3

Product Name:

Ferrite Magnet, Ceramic Magnet

Working Temperature:

Grade

Temperature

Y10T

250ºC

Y25

250ºC

Y30

250ºC

Y33

250ºC

Y35

250ºC

Y30BH

250ºC

Y33BH

250ºC

Magnet Shape:

Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available

Features:

A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion
& demagnetization. However, it has lower energy levels (Br) and is brittle in nature.

Applications:

Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.

Specifications

Permanent Ferrite Magnet
ISO/TS:164949:2009
High performance,high consistency
5000T/ year

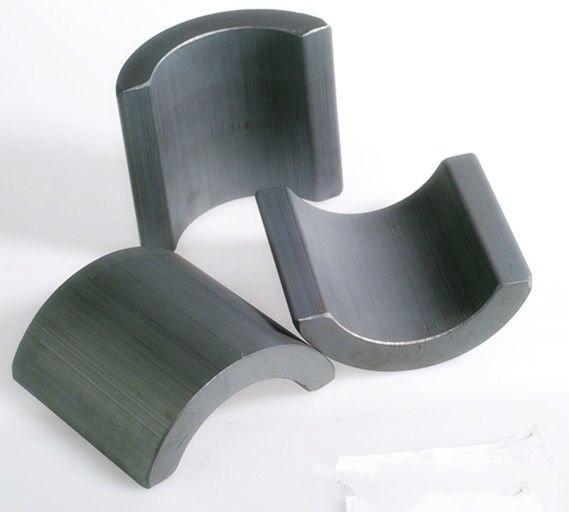

Arc Segment


Name:  ferrite tile

size: Customer made



Product styles available: Arc, Segment



Grade:

JC-Y3932;JC-Y3939;JC-Y4041;JC-Y4127;JC-Y4231;JC-Y3744;JC-Y3849;JC-Y4240 etc ....



Magnetic property

Br can reach  430 mT                Hcb can reach 310 KA/m,

Hcj can reach 395 KA/m              (BH)max can reach 3.6 kJ/m3



Size

Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height



Intelligence Honor

In October 2004 ,It was conferred with High-tech Product Certificate ,awarded as a High-tech Enterprises in Sichuan by Sichuan Provincial Science and Technology Department in December 2004,and “First Price of Sichuan SME Technology Innovation  Award” in December 2004.In July 2004,our new JC-Y4240 performance (equivalent to Japan’s TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support . In 2007 ,”Technology of  manufacturing high-performance ferrite permanent magnet with YF30 pre-sintering materials ” were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations.

Please note : Our quotation  for you is for your drawings which include magnetic property and size.
