Quick Details
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Model Number: OEM.
Type: Permanent, Ring-shape Ferrite magnet
Composite: Ferrite Magnet
Shape: Cup Shape
Application: Moto Magnet
Magnet info
Materials
Ferrite
Grades
Y25, Y30, Y33, Y35,Y30BH,Y10T, Y40
Shapes
Disc,disk,cylinder,block,ring,bar and customized
Size
Length x Width x Thickness You could choose freely according to your plan.
Certificate
IATF 16949
Quality
Our expert quality control department ensures magnets are high quality.
Feature
High performance, High Consistency
Applications
Household application, Industrial application….
Materials
Permanent ferrite magnet is made of SrO. 6Fe2O3 and other microelements by ceramic processing.
Strontium ferrite powders have been designed to produce all grades of hard ferrites. High quality is made by adding proper additives into the powders. Strict quality control system ensure that the quality is stable and reliable.
Magnetic property
Br can reach 430 mT Hcb can reach 310 KA/m,
Hcj can reach 395 KA/m (BH)max can reach 3.6 kJ/m3
Size

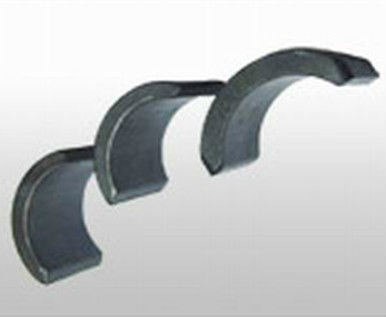

Provide various dimensions of magnets according to your drawings or samples. Size of Arc magnet includes inner radius, chord length, axis height, harc height.
Intelligence Honor
We have worked in this field for over 30 years history.
In October 2004, It was conferred with High-tech Product Certificate, awarded as a High-tech Enterprises in Sichuan" by Sichuan Provincial Science and Technology Department in December 2004, and "First Price of Sichuan SME Technology Innovation Award in December 2004. In July 2004, our new JC-Y4240 performance (equivalent to Japan's TDK FN6B performance level) of ferrite permanent technology was identified and approved by the experts from Science and Technology Department of the Sichuan Province. The declared High Performance Ferrite Permanent Magnet (JC4545)has been listed among Key Science and Technological Program of Sichuan Province and has been given financial support. In 2007, "Technology of manufacturing high-performance ferrite permanent magnet with YF30 pre-sintering materials " were awarded with the tile of Outstanding Technical Achievements and Outstanding Products by the National Materials and Devices industry associations
