Quick Details
Place of Origin: Sichuan, China (Mainland), Sichuan, China (Mainland)
Brand Name: JOINT-MAG, Joint-Mag
Type: Permanent, Starter Parts
Composite: Ferrite Magnet, Ferrite Magnet
Shape: Block, Arc, Segment, Block, Sheet, other according to your requirements
Application: Industrial Magnet
Size: According to customer's requirements
Car Make: Automobile Staters
Model Number: Permanent
Name: Ferrite
Color: Charcoal gray
| GRADE | Br | Hcb | Hcj | (BH)max | ||||
| T | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| JC-Y3932 | 0.375-0.400 | 3750-4000 | 230-275 | 2890-3456 | 235-290 | 2950-3645 | 26.5-31.5 | 3.33-3.96 |
| JC-Y3939 | 0.380-0.400 | 3800-4000 | 255-290 | 3200-3645 | 260-325 | 3260-4080 | 26.5-31.8 | 3.33-4.00 |
| JC-Y4041 | 0.390-0.415 | 3900-4150 | 260-300 | 3260-3770 | 300-350 | 3770-4400 | 27.0-32.0 | 3.39-4.02 |
| JC-Y4127 | 0.400-0.420 | 4000-4200 | 180-225 | 2260-2825 | 185-228 | 2320-2865 | 30.0-33.6 | 3.77-4.22 |
| JC-Y4231 | 0.410-0.430 | 4100-4300 | 220-260 | 2765-3265 | 255-270 | 2825-3390 | 31.5-35.5 | 3.95-4.46 |
| JC-Y3849 | 0.370-0.400 | 3700-4000 | 271-305 | 3405-3830 | 370-400 | 4650-5025 | 26.0-31.2 | 3.27-3.92 |
| JC-Y4240 | 0.410-0.430 | 4100-4300 | 285-314 | 3580-3945 | 306-340 | 3845-4270 | 31.5-34.4 | 3.95-4.32 |
| JC-Y4545 | 0.440-0.460 | 4400-4600 | 310-354 | 3895-4445 | 346-375 | 4350-4710 | 36.5-39.5 | 4.59-4.96 |
| JC-Y4350 | 0.420-0.440 | 4200-4400 | 295-325 | 3700-4080 | 382-410 | 4800-5150 | 33.5-36.5 | 4.21-4.59 |
Specifications
1, ferrite magnet for automobile starters
2, ISO/TS16949: 2009
3, good quality and competitive price
4, excellent service
Detailed Product Description
1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate: ISO9001: 2000
1)High performance:
JC-Y3932; JC-Y3939; JC-Y4041; JC-Y4127; JC-Y4231; JC-Y3744; JC-Y3849; JC-Y4240 JC-Y4350 etc (The grade like JC-Y4350&JC-Y3849, JC-Y4240could meet requirements on strong power).
2)High working temperature:
The JC-Y4350 series with 4800-5150 Oe super-high coercive force can replace NdFeB magnets with much lower price.
3)High consistency:
The Br and Hcj of surface magnetic field and magnetic flux can be controlled with +/-1%.
4)High Anti-corrosion:
The sale spray test and humid heat test of the high anti-corrosion coating could be more than 800 hours
5) Low weight loss
The average low weight loss is less than 10 mg/cm2 in 20 days.
Pros: Pretty strong hold between two of these blocks even if a couple of them by contacting the other one or plain iron. It's difficult to pull away them(easy to slide however).
Ferrite Magnet applications
Motor assemblies, step motor, DC motor, linear motor, speakers, and so on.
Also good for attaching thick stacks of paper to refrigerators etc or pinching papers or textiles together.
Packaging & Delivery
Packaging Details: Carton Wood Pallet
Special Package according to your requirements
Delivery Detail: 10-40 daysor according to your requirements

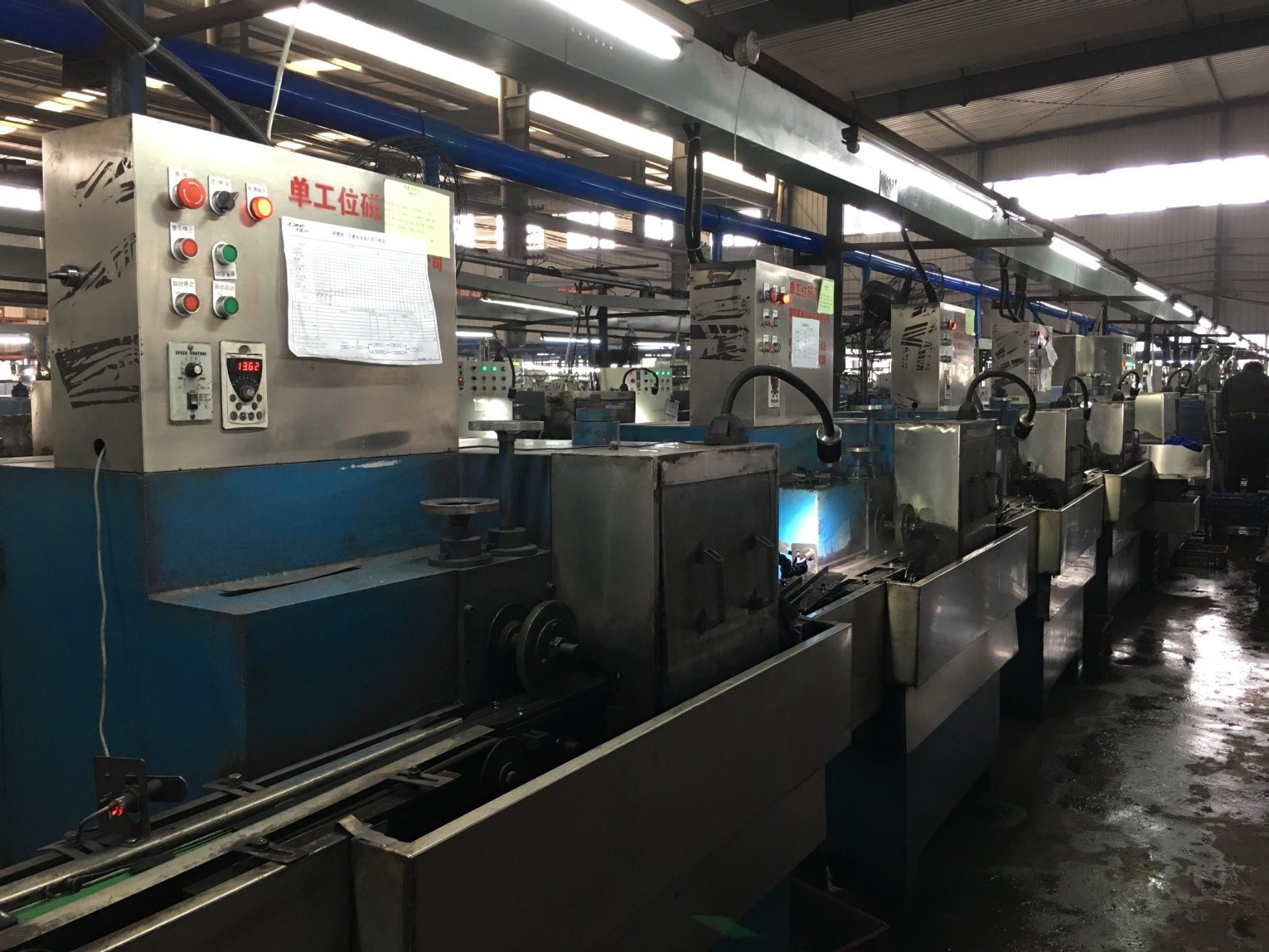

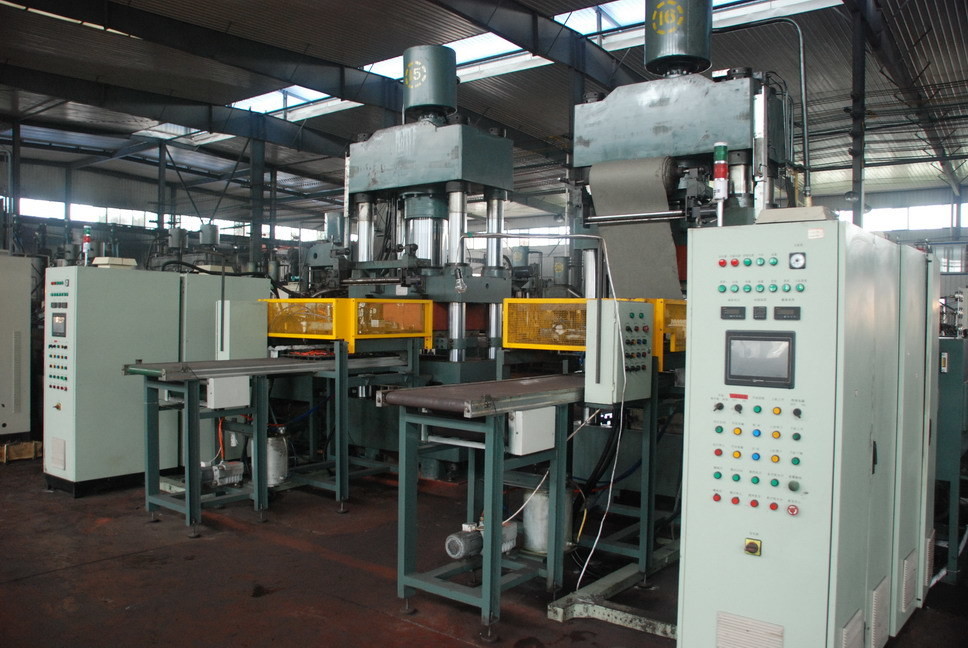

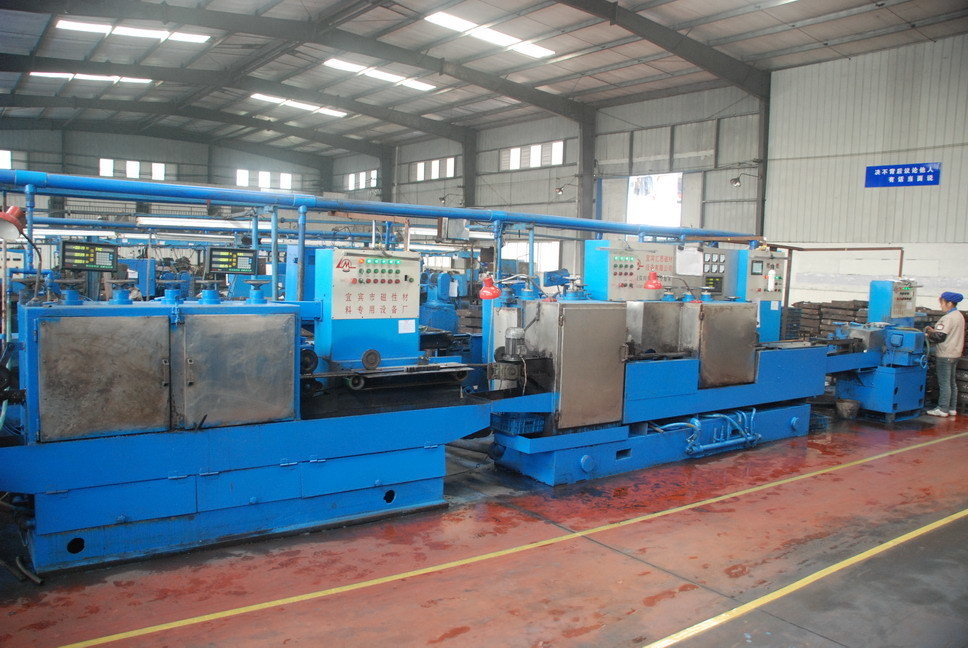

Sincerely welcome to visit our factory.
Samples are available for your test.
