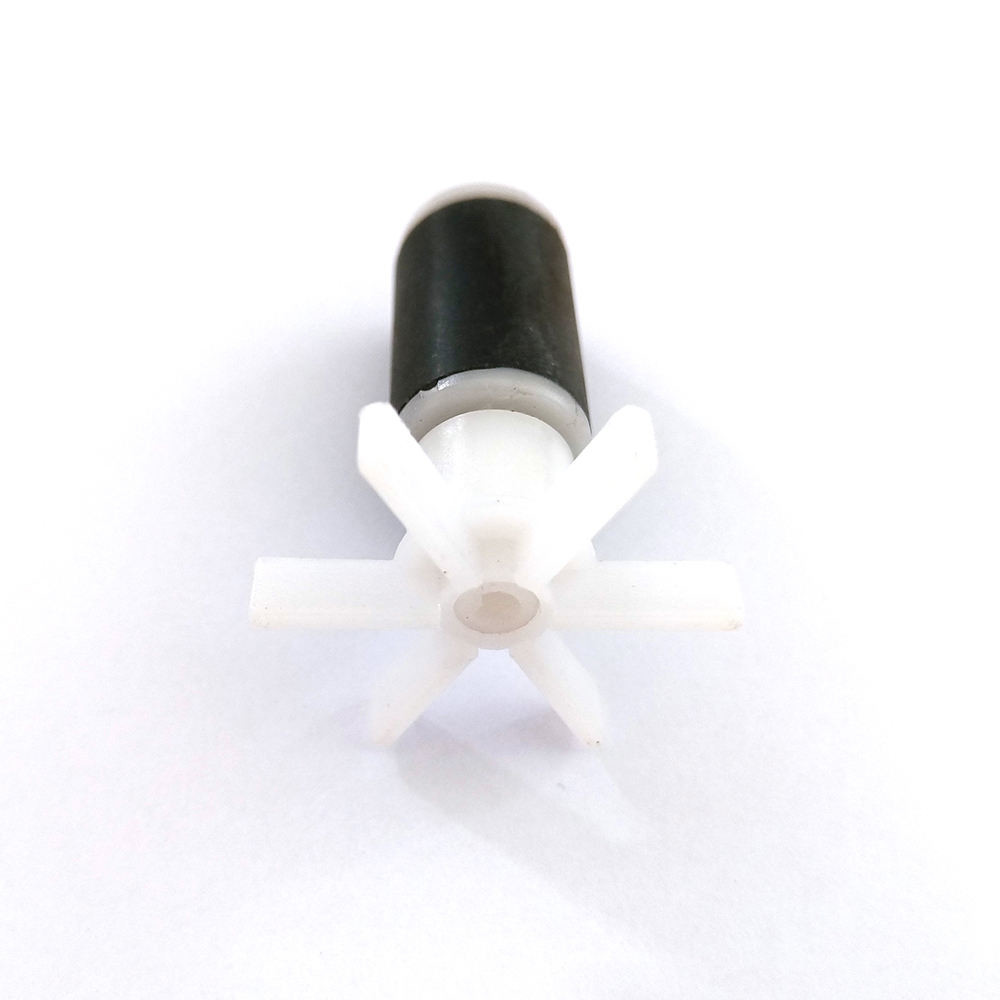

Grade 3 Injection Molded Magnet Joint Mag Charcoal Gray Car Starter Parts

Negotiable
MOQ
Negotiable
Price
Grade 3 Injection Molded Magnet Joint Mag Charcoal Gray Car Starter Parts
Features Gallery Product Description Request A Quote
Features
Specifications
Transport Package: Customized Cartons And Pallets
Specification: ISO/TS16949
Trademark: Joint-Mag
Origin: Sichuan, China
Application: Motor Magnet
High Light:

Grade 3 Injection Molded Magnet

,

Injection Molded Magnet Joint Mag

,

Grade 3 Hard Ferrite Magnets

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Certification: IATF 16949
Model Number: OEM
Payment & Shipping Terms
Packaging Details: 5000T Annual Capacity
Payment Terms: T/T
Supply Ability: 5000T Annual Capacity
Product Description

Grade 3 Injection Molding Ferrite Magnet by Joint-Mag

Product Description

Place of Origin: Sichuan, China (Mainland), Sichuan, China (Mainland)

Brand Name: Joint Mag, Joint Mag

Type: Permanent, Car Starter Parts

Composite: Ferrite Magnet, ferrite magnet

Shape: Block, tile

Application: Motor Magnet

Size: According to customer's drawing

Model Number: permanent

Name: Magnet tile

Color: charcoal gray



GRADE Br Hcb Hcj (BH)max
T Gs kA/m Oe kA/m Oe kJ/m3 MGOe
JC-Y3932 0.375-0.400 3750-4000 230-275 2890-3456 235-290 2950-3645 26.5-31.5 3.33-3.96
JC-Y3939 0.380-0.400 3800-4000 255-290 3200-3645 260-325 3260-4080 26.5-31.8 3.33-4.00
JC-Y4041 0.390-0.415 3900-4150 260-300 3260-3770 300-350 3770-4400 27.0-32.0 3.39-4.02
JC-Y4127 0.400-0.420 4000-4200 180-225 2260-2825 185-228 2320-2865 30.0-33.6 3.77-4.22
JC-Y4231 0.410-0.430 4100-4300 220-260 2765-3265 255-270 2825-3390 31.5-35.5 3.95-4.46
JC-Y3849 0.370-0.400 3700-4000 271-305 3405-3830 370-400 4650-5025 26.0-31.2 3.27-3.92
JC-Y4240 0.410-0.430 4100-4300 285-314 3580-3945 306-340 3845-4270 31.5-34.4 3.95-4.32
JC-Y4545 0.440-0.460 4400-4600 310-354 3895-4445 346-375 4350-4710 36.5-39.5 4.59-4.96
JC-Y4350 0.420-0.440 4200-4400 295-325 3700-4080 382-410 4800-5150 33.5-36.5

4.21-4.59





Specifications

1, Ferrite magnet for DC Motor
2, ISO/TS16949: 2009
3, Good quality and competitive price
4, Excellent service


Sincerely welcome to visit our factory.

Samples are available for your test.


Detailed Product Description


1. Strong SrO·6Fe2O3 Magnet with high quality
2. Custom-made dimension
3. Reasonable price
4. Certificate:ISO9001:2000

Permenant Ferrite Magnets for sale



Ferrite Magnets' outstanding properties

1) High performance:

JC-Y3932;JC-Y3939;JC-Y4041;JC-Y4127;JC-Y4231;JC-Y3744;JC-Y3849;JC-Y4240 JC-Y4350 etc (The grade like JC-Y4350&JC-Y3849,JC-Y4240could meet requirements on strong power).

2) High working temperature:

The JC-Y4350 series with 4800-5150 Oe super-high coercive force can replace NdFeB magnets with much lower price.

3) High consistency:

The Br and Hcj of surface magnetic field and magnetic flux can be controlled with +/-1%.

4) High Anti-corrosion:

The sale spray test and humid heat test of the high anti-corrosion coating could be more than 800 hours

5) Low weight loss

The average low weight loss is less than 10 mg/cm2 in 20 days.

Pros: Pretty strong hold between two of these blocks even if a couple of them by contacting the other one or plain iron.It's difficult to pull away them(easy to slide however).



Packaging & Delivery

Packaging Details: Carton Wood Pallet
Special Package according to customer's requirements

Delivery Detail: 10-40 days or according to customer's requirements
