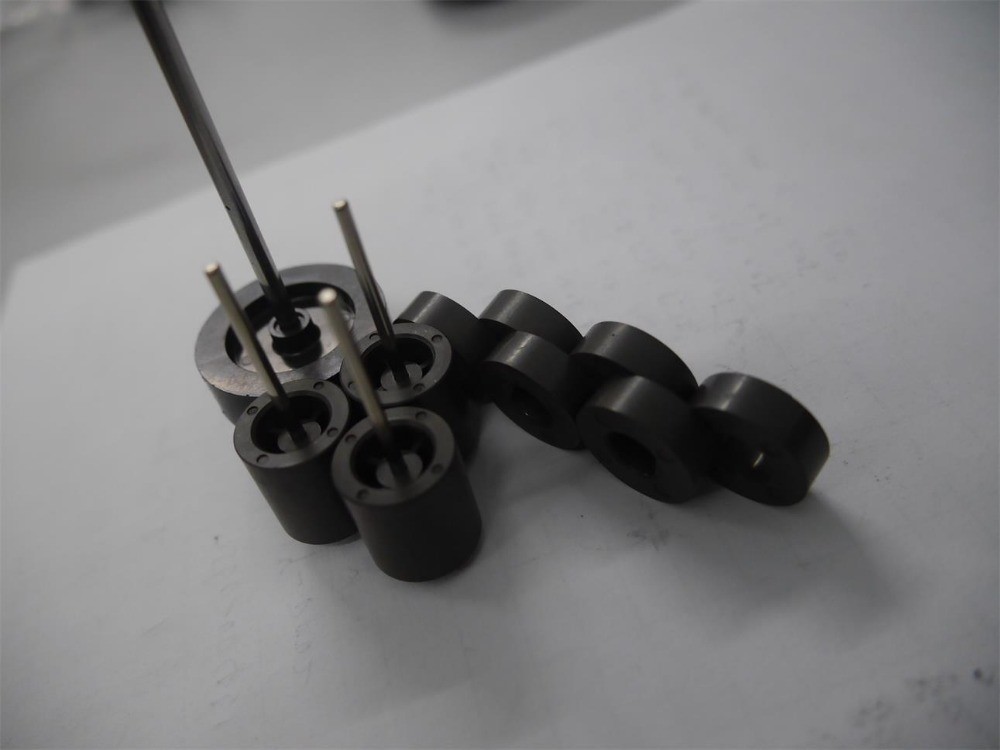

Customized 6Fe2O3 Injection Molded Magnet Various BLDC Rotor Permanent Magnet

Negotiable
MOQ
Negotiable
Price
Customized 6Fe2O3 Injection Molded Magnet Various BLDC Rotor Permanent Magnet
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: IATF 16949
Port: Shanghai, China
Transport Package: Carton ,Wooden Pallet, Customized Package
Type: Permanent
Application: Industrial Magnet, Motor Magnet
Trademark: JOINT-mag
Origin: Sichuan, China (Mainland)
High Light:

6Fe2O3 Injection Molded Magnet

,

BLDC Rotor Injection Molded Magnet

,

BLDC Rotor Permanent Magnet

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: JOINT-MAG
Model Number: OEM
Payment & Shipping Terms
Packaging Details: Carton Wood Pallet According To Requirements
Payment Terms: T/T, L/C
Supply Ability: 5000T Annual Capacity
Product Description

Customized 6Fe2O3 Injection Molded Magnet Various BLDC Rotor Permanent Magnet

Product Description

Quick Details
Place of Origin: Sichuan, China (Mainland)
Brand Name: Jointmag
Color: Black
Quality: 100% Tested

Description: Permanent Ferrite Magnet For Medical Devices
Material: SrO. 6Fe2O3
Product Name: Ferrite Magnet, Ceramic Magnet
Working Temperature: Grade Temperature
  Y10T 250ºC
  Y25 250ºC
  Y30 250ºC
  Y33 250ºC
  Y35 250ºC
  Y30BH 250ºC
  Y33BH 250ºC
Magnet Shape: Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available
Features: A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion
& demagnetization. However, it has lower energy levels (Br) and is brittle in nature.
Applications: Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.

1 RESIDUAL INDUCTION Br mT 240-290
GS 2400-2900
2 COERCIVE FORCE bHc kA/m 183-203
OE 2300-2550
3 INTRINSIC COERCIVITY jHc kA/m 231-250
OE 2900-3150
4 MAXIMUM ENERGY PRODUCT (BH)max Kj/m3 12-17.1

Rotor magnets
Ferrite and NdFeB
1. Office devices, like computer, fax machine, photocopier, etc.
2. Industrial instruments, like Numerical control machine, meter, etc.
3. Automobile industry, like car, motorcycle, electric bicycle, etc.
4. Home appliances, like refrigerator, wash machine, recorder, camera, hair drier, clock, etc.

Packaging & Delivery
Packaging DetailsCarton Wooden Pallet Special Package according to your requirementsDelivery TimeAccording to the customers requirme
Injection Multi-poles ring magnets
